The industrial Ethernet switch adopts high-performance imported switching chip to ensure the stable transmission of large traffic data, and supports 10/100/100M adaptive electrical port; Support -40~85℃ operating temperature, industrial power protection, indicator status display, guide rail/rack installation, fan-less thermal housing design, to achieve real readout, convenient and fast, but also meet the EMC4 level protection, IP40 protection, 6000V lightning protection and other indicators, can adapt to a variety of harsh industrial environment application needs.
● Support 1 hundred trillion optical + 7 hundred trillion electrical configuration
● Support -40 ~ 85 ℃ wide temperature work
● IP40 protection, EMC4 level standard, 6000V lightning protection
● Aluminum alloy shell, DIN rail mounting
● Supports dual power supply redundancy DC9~60V and single power supply AC85-264V/DC110-370V
SPECIFICATION | |||

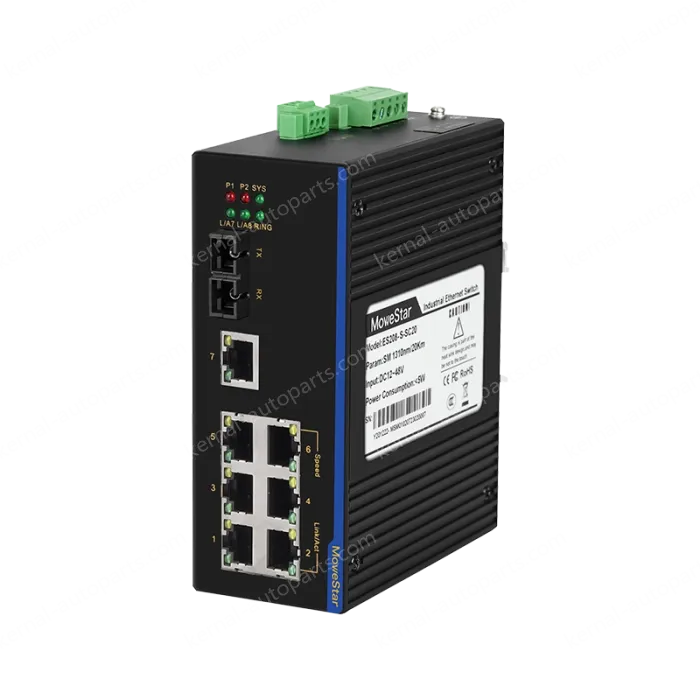

Product Model | ES208-F | ES208-2F | ES208-4F |
RJ45 port | 7 10Base-T/100Base-TX (100M electrical port) | 6 10Base-T/100Base-TX (100M copper port) | 4 10Base-T/100Base-TX (100M electrical port) |
Optical fiber port | 1 100Base-FX (100M optical port) | 2 100Base-X (100M optical ports) | 4 100Base-X (100M optical ports) |
Optical port parameters | Wavelength: 1310nm (single-mode)/1550nm (single-mode) 1310nm (multi-mode) ptical port type: SC/FC/ST optical interface optional Transmission distance: 20~80km optional (single-mode) Transmission rate: 155Mbps | ||
power supply | DC: DC12-48V (dual power redundancy) AC: AC85-264V/DC110-370V (single power supply) | ||
Power Consumption | <5W(@24VDC) | ||
Network Standards | IEEE 802.3, IEEE 802.3i, IEEE 802.3u | ||
Exchange | store and forward | ||
Backplane Bandwidth | 1.6Gbps | ||
ESD index | EN61000-4-2 anti-static (ESD) level 4: +8kV contact discharge, +15kV air discharge | ||
Size | 138mmx54mmx110mm (excluding DIN rail and terminal block size) | ||
Operating temperature | -40°C~+85°C | ||
Certification | CCC , CE , FCC , RoSH | ||
packing list | Network switch*1 Power cord*1 User Manual*1 Certificate of Qualification*1 | ||
